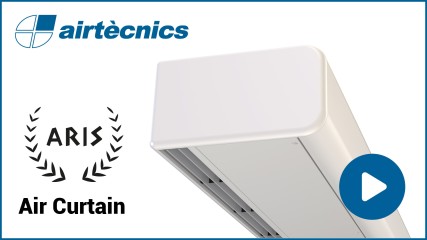

Air curtain Aris
The contemporary, discreet and elegant design of ARIS air curtain together with its high-quality finishes make it a top air curtain for commercial entrances up to 3.5 meters high, fulfilling an installation that guarantees efficient and sustainable air conditioning without abruptly clashing with the interior architecture and the design of the premises.
ARIS air curtain features a smooth front panel with rounded edges and shapes, customizable with logos, lighting, signage or safety and informational signs. The inlet grille is hidden in the upper part, thus avoiding the internal vision of the air curtain and the filter.
- Stylish, discreet and contemporary design adaptive to any interior architecture.
- Smooth front panel can be customized with logotypes, lighting, lettering or safety and informative signals, according to the client requirements.
- Self-supporting steel rounded casing with edgeless plastic side covers, finished in structural epoxy-polyester painting white colour RAL9016 as standard. Other colours are available on request.
- Hidden top air entrance, avoiding the inside view of the unit and the inlet grille.
- Anodized aluminium outlet vanes, airfoil shaped.
- Low noise twisted cross-flow fans driven by a 2-speed external rotor motor.
- "P" type with water heated coil and integrated regulation for ON/OFF or three stages 0-10V proportional valve. “E” type with electrical shielded elements, three stages with integrated regulation. “A” type without heating, air only.
- Advanced Plug&Play control. Includes: Advanced PRO control with LCD display and integrated thermostat, door contact, 7m RJ11 cable and remote control. Optional: intelligent Clever Pro Control (automatic, programmable, ModBus for PKC, timer, etc.)
| Model | Nominal Airflow m³/h | Recommended Installation Height m |
|---|---|---|
| ARIS 1000 A | 1900 | 2,5-3,5 |
| ARIS 1500 A | 2800 | 2,5-3,5 |
| ARIS 2000 A | 3800 | 2,5-3,5 |
| Model | Nominal Airflow m³/h | Electrical Heating Capacity 400Vx3 kW | Recommended Installation Height m |
|---|---|---|---|
| ARIS 1000 E | 1800 | 3/6/9 | 2,5-3,5 |
| ARIS 1500 E | 2800 | 4/8/12 | 2,5-3,5 |
| ARIS 2000 E | 3600 | 6/12/18 | 2,5-3,5 |
| Model | Nominal Airflow m³/h | Heating Capacity 80/60ºC (kW) kW | Heating Capacity 60/40ºC (kW) kW | Recommended Installation Height m |
|---|---|---|---|---|
| ARIS 1000 P86 | 1750 | 9,32 | - | 2,5-3,5 |
| ARIS 1500 P86 | 2625 | 14,5 | - | 2,5-3,5 |
| ARIS 2000 P86 | 3500 | 19,34 | - | 2,5-3,5 |
| ARIS 1000 P64 | 1600 | - | 7,27 | 2,5-3,5 |
| ARIS 1500 P64 | 2350 | - | 11,15 | 2,5-3,5 |
| ARIS 2000 P64 | 3200 | - | 15,08 | 2,5-3,5 |
