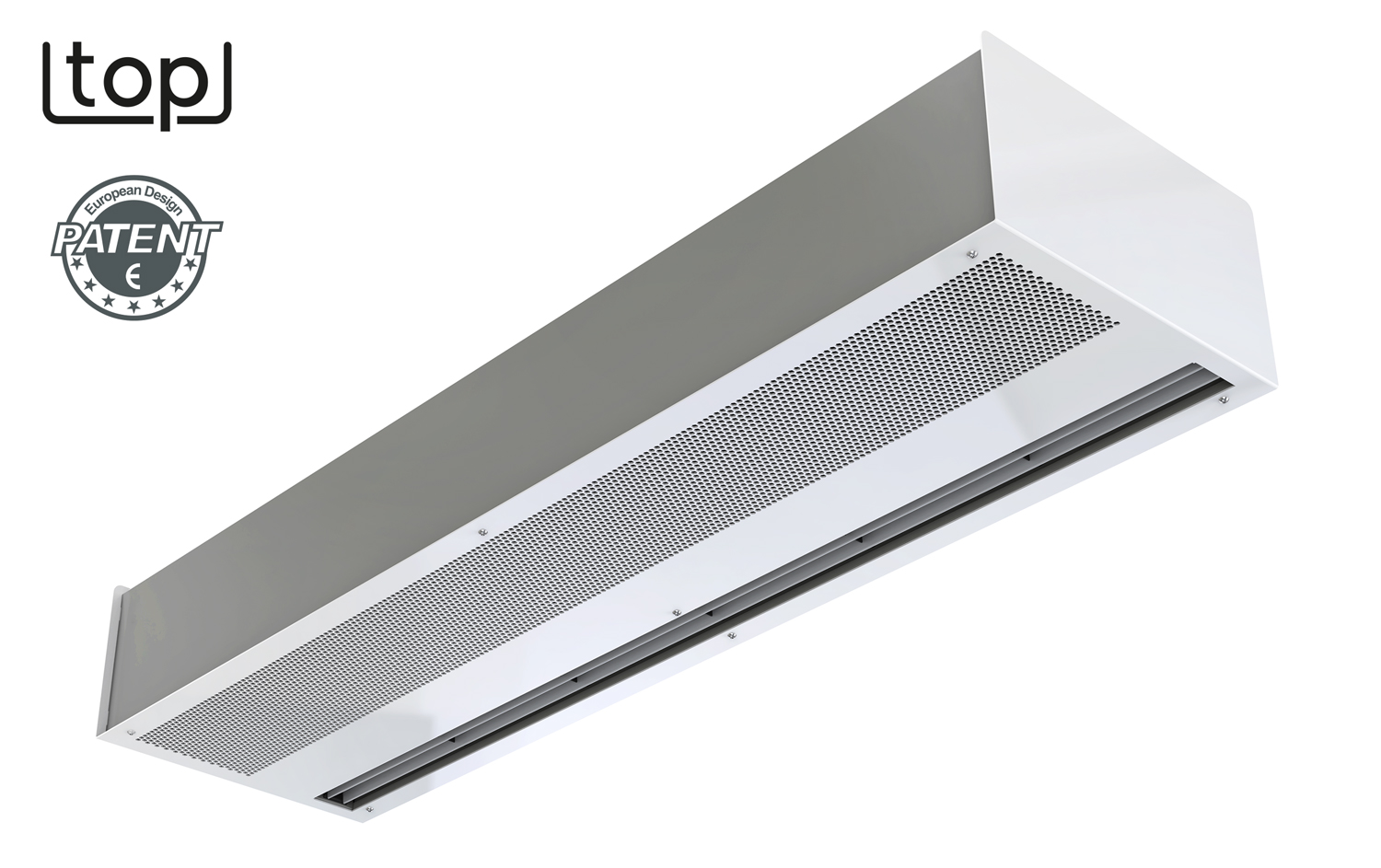

Air curtain Top
The innovative concept of recessed curtain to be installed in a totally visible way, turns it into a decorative curtain. It is designed to be integrated in modern premises with contemporary architecture or industrial style decoration. The front panel is ideal for customisation with logos, lighting, lettering or signage, according to customer requirements.
- Innovative concept of decorative air curtain based on a recessed model to be installed free-hanging.
- Smooth front panel can be customized with logotypes, lighting, lettering or safety and informative signals, according to the client requirements.
- Self-supporting casing construction made of galvanized steel plate painted in grey RAL9006. Other colours are available on request.
- Inlet and Outlet inbuilt in the same grid painted in white RAL9016. Other colours or stainless steel are available on request.
- Anodized aluminium outlet vanes, airfoil shaped.
- Low noise twisted cross-flow fans driven by a 2-speed external rotor motor.
- "P" type with water heated coil and integrated regulation for ON/OFF or three stages 0-10V proportional valve. “E” type with electrical shielded elements, three stages with integrated regulation. “A” type without heating, air only.
- Advanced Plug&Play control. Includes: Advanced PRO control with LCD display and integrated thermostat, door contact, 7m RJ11 cable and remote control. Optional: intelligent Clever Pro Control (automatic, programmable, ModBus for PKC, timer, etc.)
| Model | Nominal Airflow m³/h | Recommended Installation Height m |
|---|---|---|
| TOP 1000 A | 1700 | 2,2-2,8 |
| TOP 1500 A | 2200 | 2,2-2,8 |
| TOP 2000 A | 3200 | 2,2-2,8 |
| Model | Nominal Airflow m³/h | Electrical Heating Capacity 230Vx1 kW | Electrical Heating Capacity 400Vx3 kW | Recommended Installation Height m |
|---|---|---|---|---|
| TOP 1000 E | 1700 | - | 1,9/3,8/5,6 | 2,2-2,8 |
| TOP 1000 E-9 | 1700 | - | 3/6/9 | 2,2-2,8 |
| TOP 1500 E | 2200 | - | 3/6/9 | 2,2-2,8 |
| TOP 2000 E | 3200 | - | 3,8/7,5/11,3 | 2,2-2,8 |
| TOP 1000 E230 | 1700 | 1,9/3,8/5,6 | - | 2,2-2,8 |
| TOP 1500 E230-6 | 2200 | 1,9/3,8/5,6 | - | 2,2-2,8 |
| TOP 1500 E230-9 | 2200 | 3/6/9 | - | 2,2-2,8 |
| TOP 2000 E230 | 3200 | 3,8/7,5/11,3 | - | 2,2-2,8 |
| Model | Nominal Airflow m³/h | Heating Capacity 80/60ºC (kW) kW | Recommended Installation Height m |
|---|---|---|---|
| TOP 1000 P | 1450 | 8.3 | 2,2-2,8 |
| TOP 1500 P | 2175 | 13 | 2,2-2,8 |
| TOP 2000 P | 2850 | 17.1 | 2,2-2,8 |
