Air curtain Zen BB
Decorative, minimalist and elegant, ZEN BB air curtain is the favourite of architects and designers to include in their building projects. The BB version of the ZEN air curtain has been designed with the latest generation of EC fans and provides a power and performance equivalent to an industrial air curtain. Its smart design and high performance is perfect to blend with any building’s internal or external aesthetics being also an active part of decoration or premises environment. ZEN BB air curtain offers infinite possibilities of customization, how far does your imagination go?
- Decorative air curtain in contemporary architectural style. Its minimalist and smart design integrates in any environment and offers infinite options to customize.

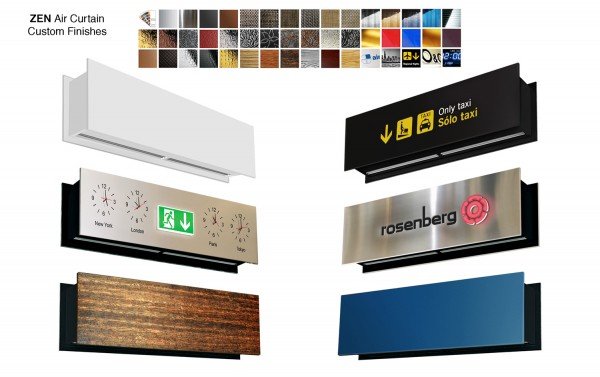

- The panels can include logos, lighting, signage, safety or information signs, graphics, pictures, clocks, all according to customer specifications.
- Front anodized aluminium panels. Optionally manufactured in brushed or mirror polished stainless steel. Other materials are possible, such as galvanized steel, smooth or texturated skinplate, wood, etc.
- Central structure made of galvanized steel finished in black forge as standard. Other colours are available on request.
- Anodized aluminium outlet vanes, airfoil shaped, adjustable in both directions.
- EC Double-inlet centrifugal fans driven by an external rotor motor and low noise level, with very low consumption efficency fans.
- “P” type with water heated coil. “E” type with electrical shielded elements, three stages with integrated regulation. “A” type without heating, air only. Optional expansion DX coil.
- Includes Plug&Play control with 7m RJ45 cable and infrared remote control. Optional: Clever control (programmable, automatic, intelligent, energy saving, Modbus RTU for BMS…)
FINISHES | CATALOG
Model Nominal Airflow
m³/hRecommended Installation Height
mZEN BB 1000 A 4020 5-7 ZEN BB 1500 A 5360 5-7 ZEN BB 2000 A 8040 5-7 ZEN BB 2500 A 9380 5-7 Model Nominal Airflow
m³/hElectrical Heating Capacity 400Vx3
kWRecommended Installation Height
mZEN BB 1000 E 4020 6/15/21 5-7 ZEN BB 1500 E 5360 8/19/27 5-7 ZEN BB 2000 E 8040 12/30/42 5-7 ZEN BB 2500 E 9380 16/30/46 5-7 Model Nominal Airflow
m³/hRecommended Installation Height
mHeating Capacity 80/60ºC (kW)
kWHeating Capacity 60/40ºC (kW)
kWHeating Capacity 50/40ºC
kWZEN BB 1000 P86 3750 5-7 18,21 - - ZEN BB 1500 P86 5000 5-7 26,46 - - ZEN BB 2000 P86 7500 5-7 38,44 - - ZEN BB 2500 P86 8750 5-7 46,38 - - ZEN BB 1000 P64 3750 5-7 - 15,16 - ZEN BB 1500 P64 5000 5-7 - 21,87 - ZEN BB 2000 P64 7500 5-7 - 31,13 - ZEN BB 2500 P64 8750 5-7 - 38,96 - ZEN BB 1000 P54 3750 5-7 - - 16,48 ZEN BB 1500 P54 5000 5-7 - - 24,15 ZEN BB 2000 P54 7500 5-7 - - 35,04 ZEN BB 2500 P54 8750 5-7 - - 42,12 Model Nominal Airflow
