Air curtain Zen with OH and Kleenfan Technology
- Combines a double patented purification technology through the generation of hydroxyl radicals OH· anf the effect of photocatalysis.
- Innovative OH active technology with efficient production of hydroxyl radicals, complies with the exposure limits against chemical agents adopted by the National Institute of Safety and Health (INSS), which purifies both air and surfaces through a chain reaction. Through Advanced Oxidation Processes (AOP) inactivates up to 99.9% of pathogenic microorganisms (viruses and bacteria), improves air quality (reducing volatile organic compounds ans suspended particles) and eliminates odours.
- Includes one purificant cartridge with hydrogen peroxide solution to generate hydroxyl radicals.
- Kleenfan technology with photocatalytic purificant action fans. UV-A rays, from the long-life led, act on the titanium dioxide of the turbine generation Reactive Oxygen Species (ROS) than, through oxidation /reduction reactions, inactivate wide range of pathogenic microorganisms (viruses and bacteria). It mineralizes most of the pollutants present in urban areas produced by vehicles and industry (NOx, SOx, COx, formaldehydes, VOCs, etc.).
- Includes Advanced Clever Control with purification program operation 24h/day, 4 levels of air quality indicator and replacement alarm of hydrogen peroxide purificant cartridge (around 3 months duration, dependiong on conditions). Plug&Play, programmable, Intelligent, automatic, energy saving mode, Modbus RTU by PLC...
- Decorative air curtain in contemporary architectural style. Its minimalist and smart design integrates in any environment and offers infinite options to customize.
- The panels can include logos, lighting, signage, safety or information signs, graphics, pictures, clocks, all according to customer specifications.
- Front anodized aluminium panels. Optionally manufactured in brushed or mirror polished stainless steel. Other materials are possible, such as galvanized steel, smooth or texturated skinplate, wood, etc.
- Central structure made of galvanized steel finished in black forge as standard. Other colours are available on request.
- Anodized aluminium outlet vanes, airfoil shaped, adjustable in both directions.
- EC Double-inlet centrifugal fans driven by an external rotor motor and low noise level, with very low consumption efficency fans.
- “P” type with water heated coil. “E” type with electrical shielded elements, three stages with integrated regulation. “A” type without heating, air only. Optional expansion DX coil.
The most elegant and versatile range with air and surface purification and disinfection system by photocatalysis and OH·. Zen standard air curtain with air and surface disinfection and purification function. It combines Kleenfan and OH technologies that through the effect of photocatalysis and the generation of hydroxyl radicals OH- eliminate viruses, bacteria, odours and contaminating gases, improving the quality of the air.
Model Nominal Airflow
m³/hRecommended Installation Height
mZEN ECG 1000 A OH+FC 2700 3-4,2 ZEN ECG 1500 A OH+FC 3600 3-4,2 ZEN ECG 2000 A OH+FC 5400 3-4,2 ZEN ECG 2500 A OH+FC 6300 3-4,2 Model Nominal Airflow
m³/hElectrical Heating Capacity 400Vx3
kWRecommended Installation Height
mZEN ECG 1000 E OH+FC 2700 5/10/15 3-4,2 ZEN ECG 1500 E OH+FC 3600 7,5/15/22,5 3-4,2 ZEN ECG 2000 E OH+FC 5400 10/20/30 3-4,2 ZEN ECG 2500 E OH+FC 6300 10/20/30 3-4,2 Model Nominal Airflow
m³/hRecommended Installation Height
mHeating Capacity 80/60ºC (kW)
kWHeating Capacity 60/40ºC (kW)
kWHeating Capacity 50/40ºC
kWZEN ECG 1000 P86 OH+FC 2550 3-4,2 11.89 - - ZEN ECG 1500 P86 OH+FC 3400 3-4,2 17.29 - - ZEN ECG 2000 P86 OH+FC 5100 3-4,2 26.86 - - ZEN ECG 2500 P86 OH+FC 5950 3-4,2 33.63 - - ZEN ECG 1000 P64 OH+FC 2550 3-4,2 - 11.27 - ZEN ECG 1500 P64 OH+FC 3400 3-4,2 - 16.77 - ZEN ECG 2000 P64 OH+FC 5100 3-4,2 - 24.14 - ZEN ECG 2500 P64 OH+FC 5950 3-4,2 - 28.84 - ZEN ECG 1000 P54 OH+FC 2550 3-4,2 - - 11.5 ZEN ECG 1500 P54 OH+FC 3400 3-4,2 - - 17.86 ZEN ECG 2000 P54 OH+FC 5100 3-4,2 - - 25.24 ZEN ECG 2500 P54 OH+FC 5950 3-4,2 - - 31.38 Model Nominal Airflow
m³/hRecommended Installation Height
mZEN ECG 1000 A OH+FC 2700 3-4,2 ZEN ECG 1500 A OH+FC 3600 3-4,2 ZEN ECG 2000 A OH+FC 5400 3-4,2 ZEN ECG 2500 A OH+FC 6300 3-4,2 Model Nominal Airflow
m³/hElectrical Heating Capacity 400Vx3
kWRecommended Installation Height
mZEN ECG 1000 E OH+FC 2700 5/10/15 3-4,2 ZEN ECG 1500 E OH+FC 3600 7,5/15/22,5 3-4,2 ZEN ECG 2000 E OH+FC 5400 10/20/30 3-4,2 ZEN ECG 2500 E OH+FC 6300 10/20/30 3-4,2 Model Nominal Airflow
m³/hRecommended Installation Height
mHeating Capacity 80/60ºC (kW)
kWHeating Capacity 60/40ºC (kW)
kWHeating Capacity 50/40ºC
kWZEN ECG 1000 P86 OH+FC 2550 3-4,2 11.89 - - ZEN ECG 1500 P86 OH+FC 3400 3-4,2 17.29 - - ZEN ECG 2000 P86 OH+FC 5100 3-4,2 26.86 - - ZEN ECG 2500 P86 OH+FC 5950 3-4,2 33.63 - - ZEN ECG 1000 P64 OH+FC 2550 3-4,2 - 11.27 - ZEN ECG 1500 P64 OH+FC 3400 3-4,2 - 16.77 - ZEN ECG 2000 P64 OH+FC 5100 3-4,2 - 24.14 - ZEN ECG 2500 P64 OH+FC 5950 3-4,2 - 28.84 - ZEN ECG 1000 P54 OH+FC 2550 3-4,2 - - 11.5 ZEN ECG 1500 P54 OH+FC 3400 3-4,2 - - 17.86 ZEN ECG 2000 P54 OH+FC 5100 3-4,2 - - 25.24 ZEN ECG 2500 P54 OH+FC 5950 3-4,2 - - 31.38
 Toshiba - Building - Toshiba - Spain - Villaverde de Montejo/01 [FF].jpg "Zen - HP DX (1.1) Toshiba - Building - Toshiba - Spain - Villaverde de Montejo-01 .jpg")

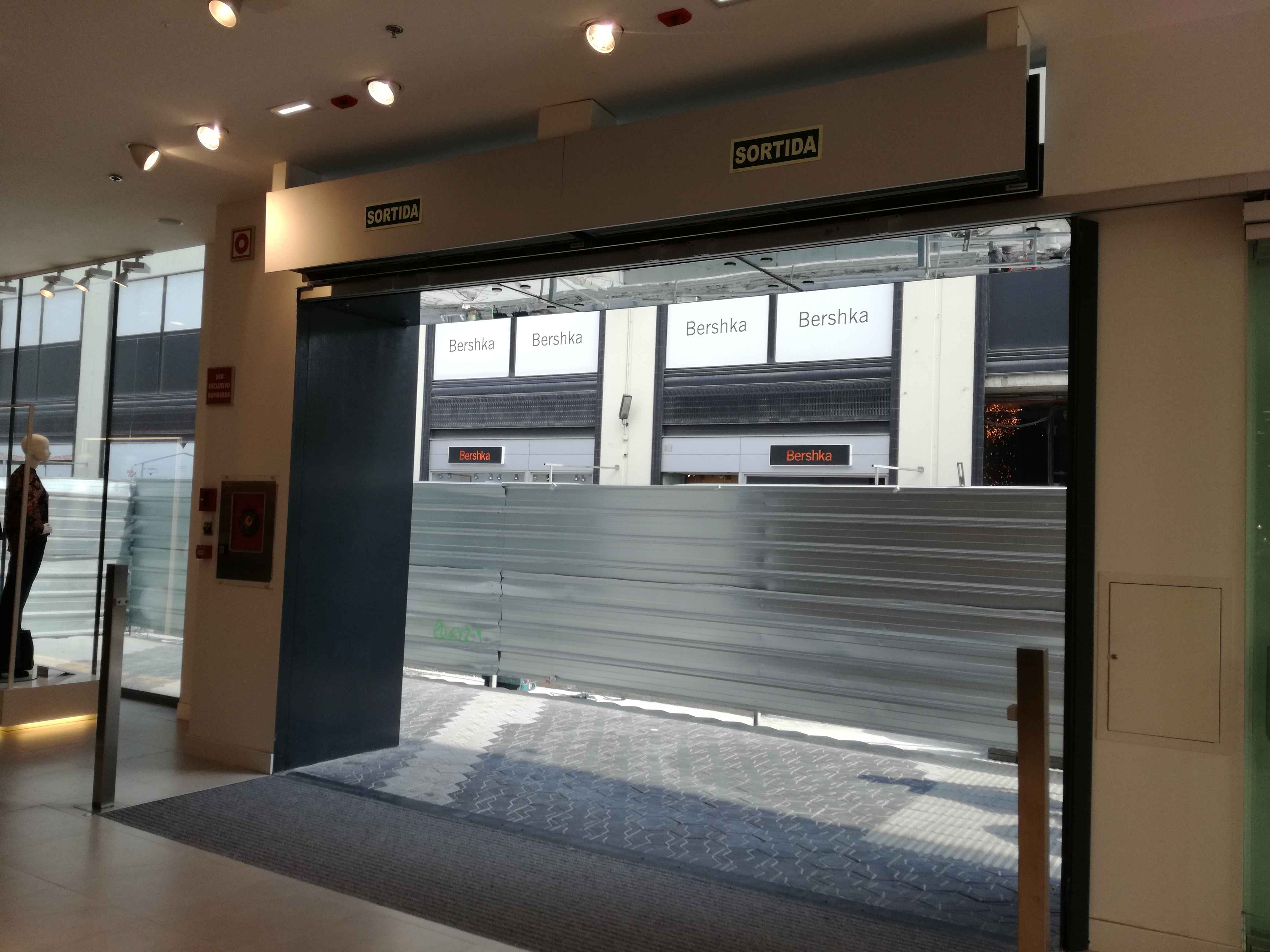

 - Spain - Barcelona/05 [FF].jpg "Zen - Color RAL 9011 - Chain Food - Viena (CC Pedralbes Centre) - Spain - Barcelona-05 .jpg")
