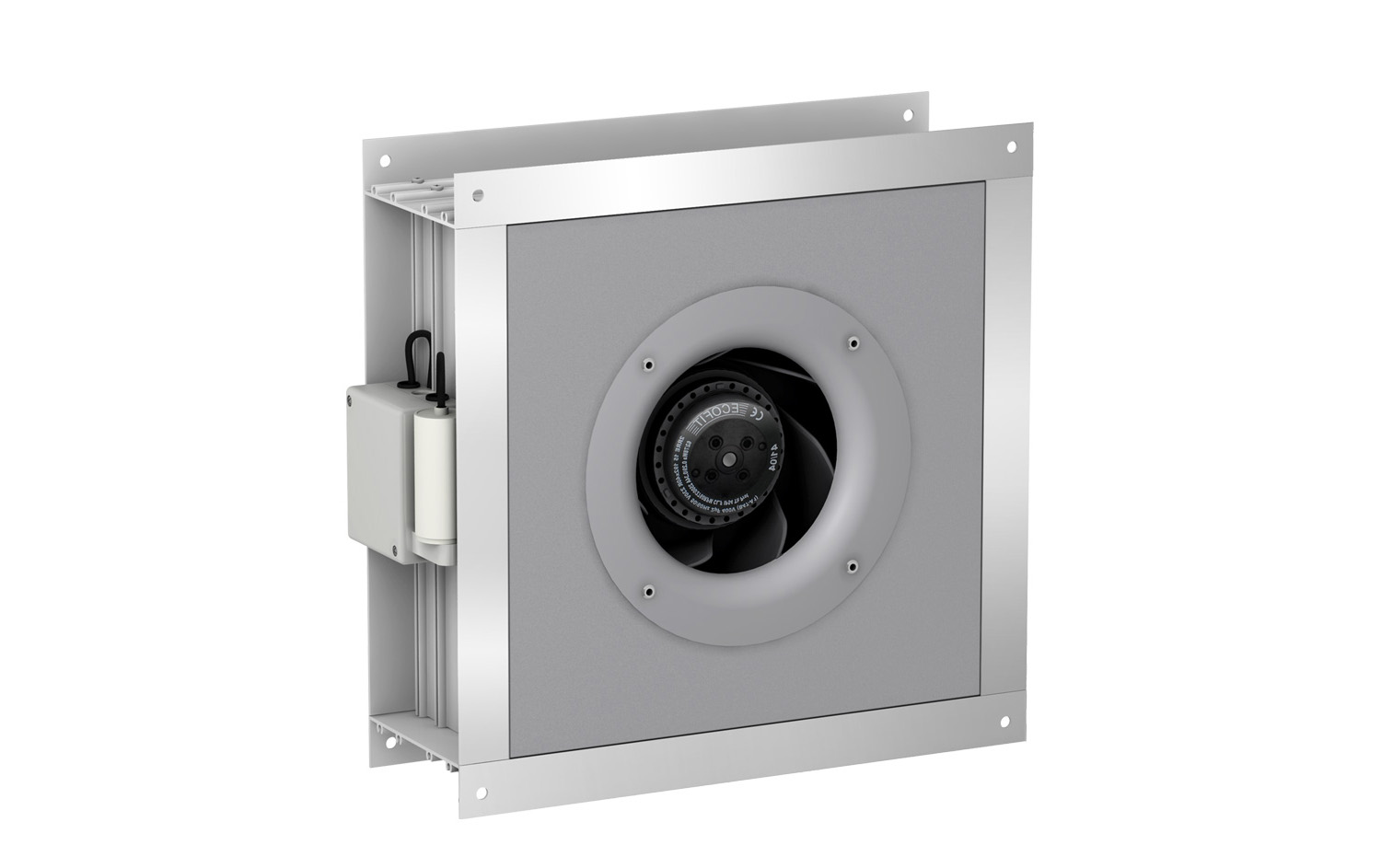

In line fan RKE
- Aluminium frame
- Several frame dimensions available for each impeller dimension
- Backward curved impellers balanced statically and dinamically according to ISO 1940, class G 2,5
- External rotor motor protected through thermal contact
- 0-100% variable speed
- Mounting in any position
- Standard dimensions according to the table or special sizes on request
| Model | Tension V (50 Hz) | Current fans A | Power W | Speed rpm | Air Flow m³/h | Maximum Pressure Pa |
|---|---|---|---|---|---|---|
| RKE 195-2 250x250 | 1x230V | 0,28 | 62 | 2510 | 575 | 350 |
| RKE 220-2 300x300 | 1x230V | 0,39 | 89 | 2525 | 935 | 450 |
| RKE 220-4 300x300 | 1x230V | 0,17 | 38 | 1390 | 515 | 120 |
| RKE 225-2 300x300 | 1x230V | 0,66 | 150 | 2480 | 1235 | 500 |
| RKE 225-4 300x300 | 1x230V | 0,23 | 50 | 1400 | 740 | 130 |
| RKE 250-2 300x300 | 1x230V | 0,83 | 190 | 2700 | 1540 | 610 |
| RKE 250-4 350x350 | 1x230V | 0,21 | 47 | 1395 | 870 | 140 |
| RKE 280-4 350x350 | 1x230V | 0,47 | 104 | 1200 | 1540 | 200 |
