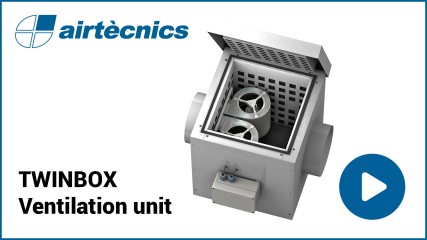

Ventilation unit Twinbox
Ventilation box with double fan to ensure constant air supply: if one fan fails, the other is automatically activated. It has a 5 cm insulation, which makes it the quietest case and includes a non-return air system.
The fan speed is fully adjustable. In addition, its maintenance is very easy thanks to the large door that gives the unit room to manoeuvre.
- Ventilation unit with 50 mm thick of sound insulation
- External rotor motor protected through thermal contact
- Centrifugal double fan with double inlet
- Back draught damper that avoids air re-circulation
- 0-100% variable speed
- Connection box IP54 incorporated
- Wide service door
- Circular connexions to standard ducts
| Model | Tension V (50 Hz) | Current fans A | Power W | Speed rpm | Air Flow m³/h | Maximum Pressure Pa |
|---|---|---|---|---|---|---|
| TWINBOX 150 | 1x230V | 0,47 | 100 | 1640 | 375 | 310 |
| TWINBOX 200 | 1x230V | 0,47 | 100 | 1640 | 375 | 310 |
| TWINBOX 200 L | 1x230V | 1,1 | 207 | 1365 | 675 | 390 |
| TWINBOX 250 | 1x230V | 1,1 | 207 | 1365 | 675 | 260 |
| TWINBOX 250 L | 1x230V | 1,2 | 268 | 1865 | 925 | 540 |
| TWINBOX 315 G | 1x230V | 0,63 | 134 | 1345 | 1400 | 230 |
| TWINBOX 315 L | 1x230V | 1,2 | 268 | 1865 | 925 | 540 |
| TWINBOX 315 XG | 1x230V | 2,6 | 570 | 1240 | 3000 | 225 |
| TWINBOX 355 | 1x230V | 2,6 | 570 | 1240 | 3000 | 225 |
| TWINBOX 400 | 1x230V | 2,6 | 570 | 1240 | 3000 | 225 |
